Dial Pattern Help

Help for FreePBX
1

I’m using freePBX 17 and need some help creating a dial pattern for an outbound route. I need a dial pattern to be able to dial any of the following numbers: 999,101,111,112

Not sure what I should put in the match pattern field. I then only want this route to be be allowed for caller ID’s 301,302,309,310

Can anyone help? i’m assuming I need a match pattern and something in the CallerID field.

Thank you.

2

It’s pretty simple if you only have a few extensions that access that particular route.

  1. Create an outbound route with the emergency numbers
  2. In the caller-id field of each line of your dial patterns, enter the extensions, separated by commas.

For better explanation of the route fields, click the “+” in the green bar at the top.

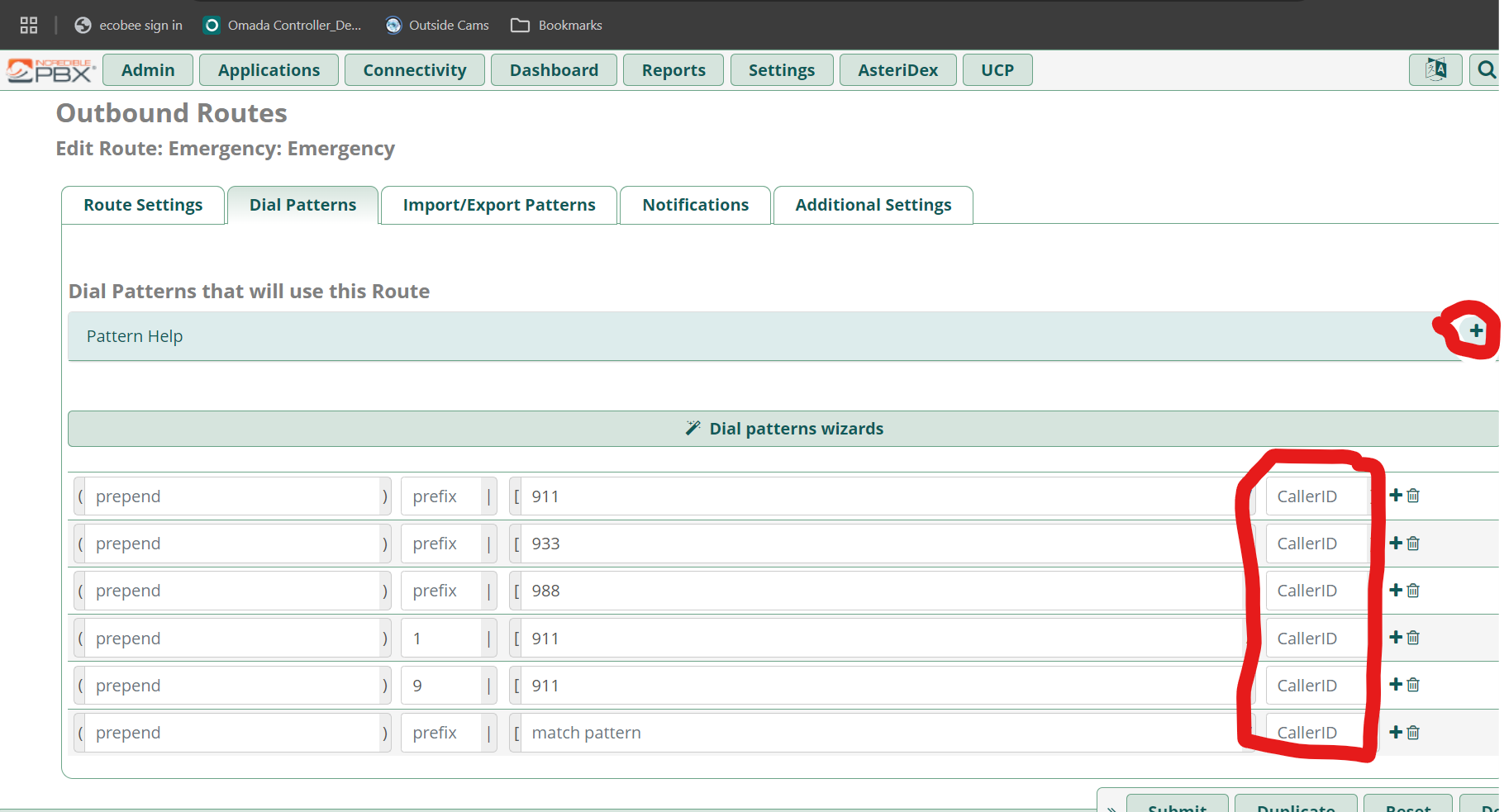

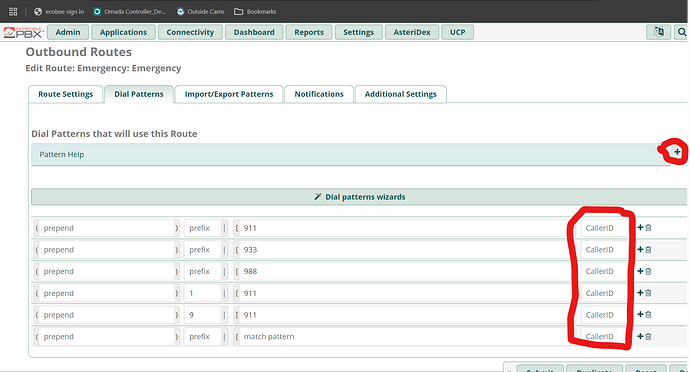

image1820×983 99.8 KB

1 Like
3

When creating a Dial Pattern, could I leave callerID blank to make that particular dial pattern available to any callerID or do i need to put dot to use as wildcard for caller ID? or is dot only wildcard for the dial pattern not callerID?

4

Yes. In the outbound route, if you put extensions in the caller-id field, that route is limited to only the designated extensions. When you create a route and leave the caller-id field blank, all extensions will flow through that route.

1 Like
5

You can do quite a bit with dial patterns in inbound and outbound routes. Seems like a good topic for a #FridayFun.

1 Like
7

When the big brain is engaged, we all profit. LOL

1 Like
